Troubleshooting

Overview​

This page collects the setup and runtime checks that usually resolve local SST example failures, especially stale generated files, wrong working directories, mismatched ports, and missing dependencies.

Most SST setup failures come from generated files, working directories, ports, or stale credentials. Start with the checks below.

Regenerate from a clean example state​

When in doubt:

cd examples
./cleanAll.sh
./generateAll.sh

Use a custom graph only after the default example works:

./generateAll.sh -g configs/your.graph

Auth does not start​

Check:

  • you built from auth/auth-server with mvn clean install;
  • the properties path is passed with -p;
  • the properties file exists, for example ../properties/exampleAuth101.properties;
  • generated Auth databases exist under auth/databases/;
  • no other process is using the configured Auth ports.

Correct command:

java -jar target/auth-server-jar-with-dependencies.jar -p ../properties/exampleAuth101.properties

Auth is ready when it shows:

Enter command (e.g., show re/cp/ta/sk/maps/dp/di, add/remove re/cp/dp...):

IntelliJ run configuration reference​

If you run Auth from IntelliJ instead of the command line, compare your run configuration with the existing screenshots from auth/README.md.

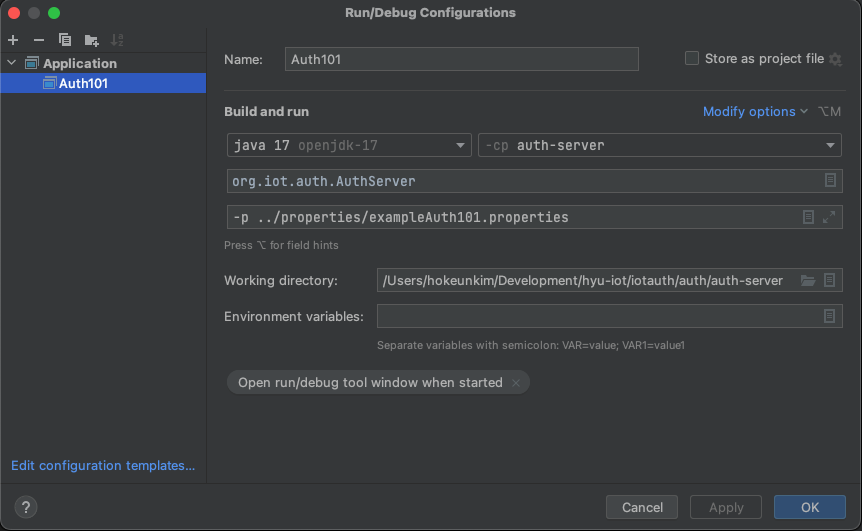

Auth101 IntelliJ run configuration

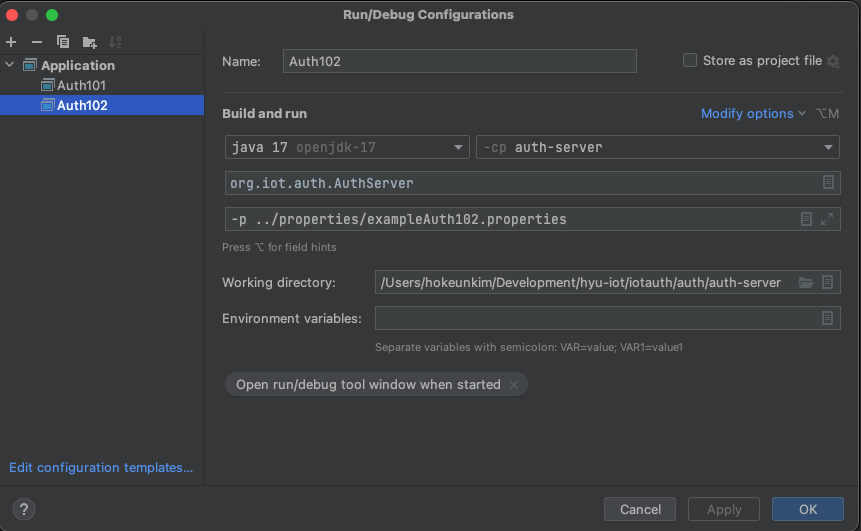

Auth102 IntelliJ run configuration

Entity cannot reach Auth​

Check the entity config:

  • C: auth.ip.address and auth.port.number;
  • Node: authInfo.host and authInfo.port;
  • graph: entityHost and tcpPort for the assigned Auth.

Also check that the entity is assigned to the Auth ID it expects:

  • C: authInfo.id;
  • Node: authInfo.id;
  • graph: assignments.

Session key request fails​

Possible causes:

  • Auth is not running.
  • Entity credentials were not generated or paths are wrong.
  • Entity name in config does not match the Auth database.
  • Communication policy does not allow the requested target.
  • Client entityInfo.purpose requests the wrong group or key ID.
  • Generated files are stale after changing the graph.

Regenerate and restart Auth before debugging deeper.

C example cannot find keys or certificates​

C configs use paths relative to the directory where the binary is run. For the server/client example, run from:

entity/c/examples/server_client_example/build

Then use:

./entity_server ../c_server.config
./entity_client ../c_client.config

Node example cannot load modules​

Run:

cd entity/node
npm install

or:

./initNodeEntities.sh

The generated example scripts expect to run from:

entity/node/example_entities/

Node example cannot find config​

Generated Node configs live under:

entity/node/example_entities/configs/

Use paths like:

node client.js configs/net1/client.config
node server.js configs/net1/server.config

Remember that these are JSON files with a .config extension.

Connection refused or handshake timeout​

Check:

  • Auth terminal is still running.
  • Server entity is running before the client tries to connect.
  • Client target port matches server listening port.
  • The server's host and port in the graph match the generated config.
  • The port is not already used by another process.

For Node clients, inspect targetServerInfoList in the generated client config. For C clients, inspect entity.server.ip.address and entity.server.port.number.

IPFS example fails​

Check:

  • IPFS CLI is installed.
  • IPFS daemon is running.
  • You generated from configs/file_sharing.graph.
  • File System Manager is running.
  • fileSystemManager.ip.address and fileSystemManager.port.number match across configs.
  • addReader.txt path is passed where the uploader expects it.
